A commercial AC repair in one business day kept this retail shop open in peak summer

The problem that kept coming back

A sign and stamp shop in Boise lost cooling in the middle of July. Not for the first time. The system had been repaired several times over the previous months, and it kept going back down.

They found us online and called. We were there the same day.

Why the same part kept failing

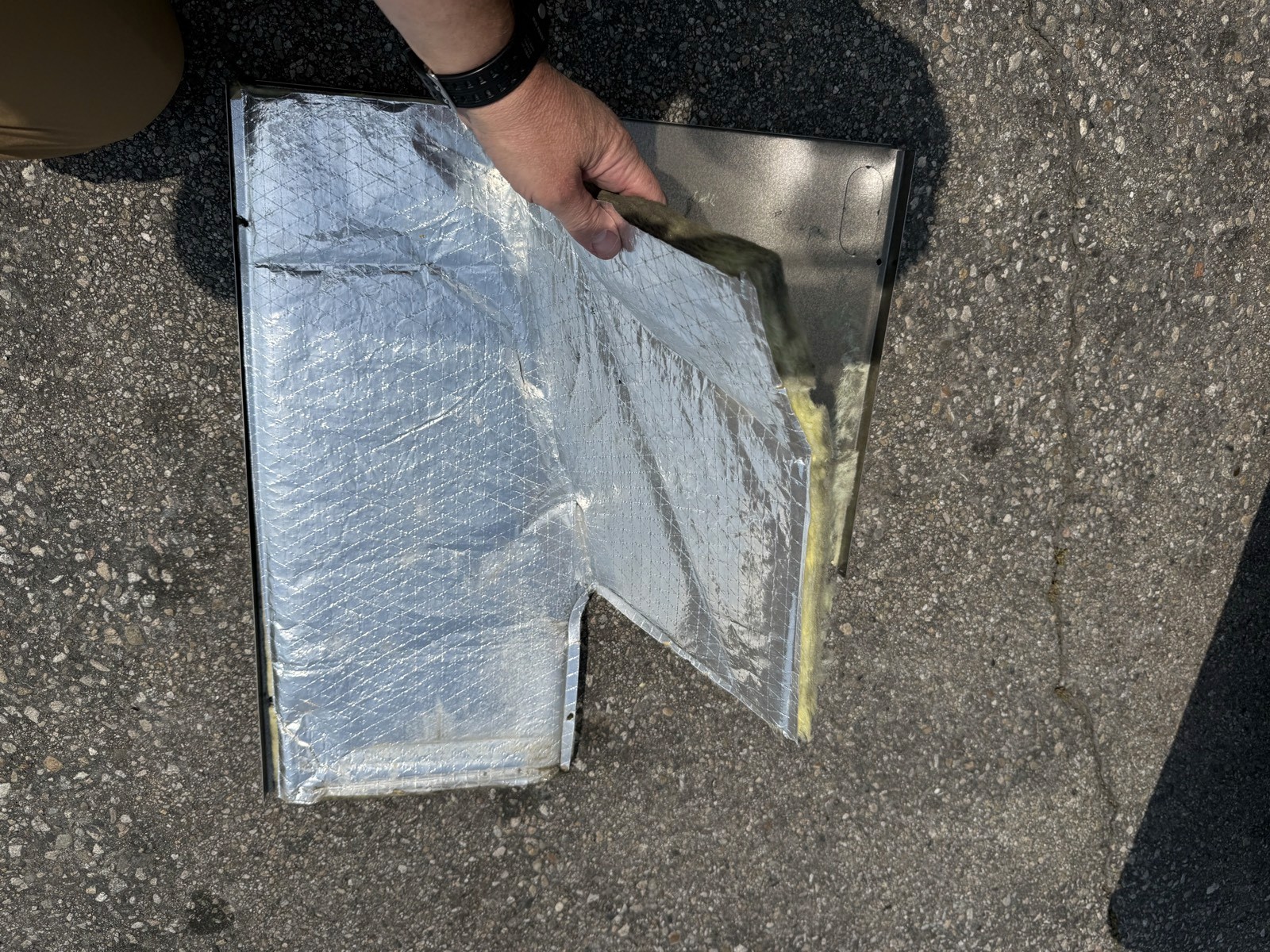

The liner as we found it, pulled loose and sitting in the path the air has to travel.

Inside the air handler, the insulation lining the cabinet had come loose on both the return and supply sides. Sheets of it had folded into the path the air takes and settled against the face of the evaporator coil.

A restriction like that does two kinds of damage, and neither one announces itself. The coil ices over, so the shop stops getting cold air. And the blower pulls against the blockage every hour the shop runs, until the motor fails electrically. When we opened the cabinet, it wasn't turning at all.

The part that failed was the motor. The reason it failed was the insulation.

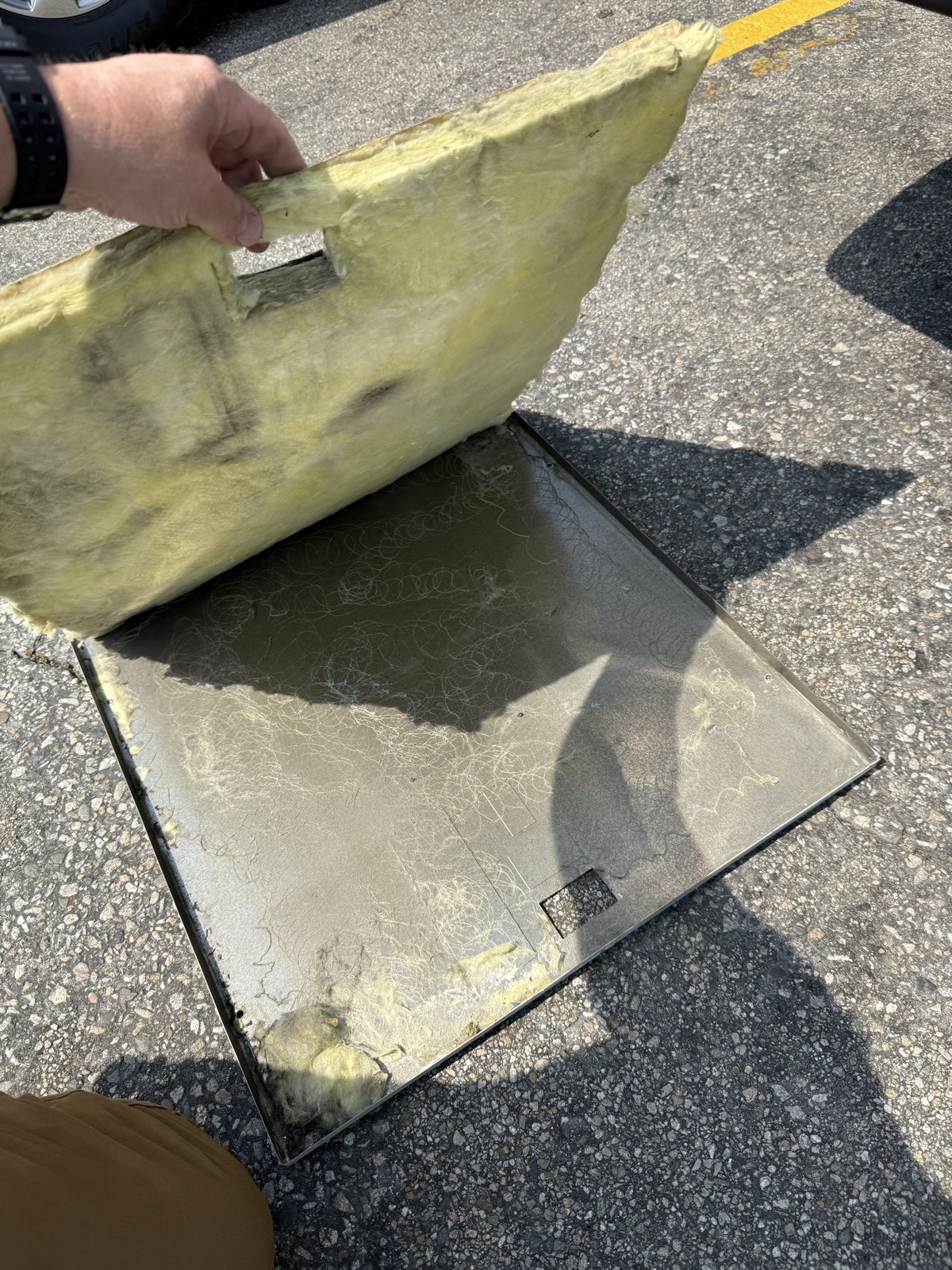

Both panels had let go, return side and supply side.

What keeps it from happening again

That went first, the same afternoon, before a single part was ordered. We bonded the insulation back in place with an adhesive made for the job and sealed every seam and edge with UL-listed foil tape, so it can't work loose and get drawn into the airflow again.

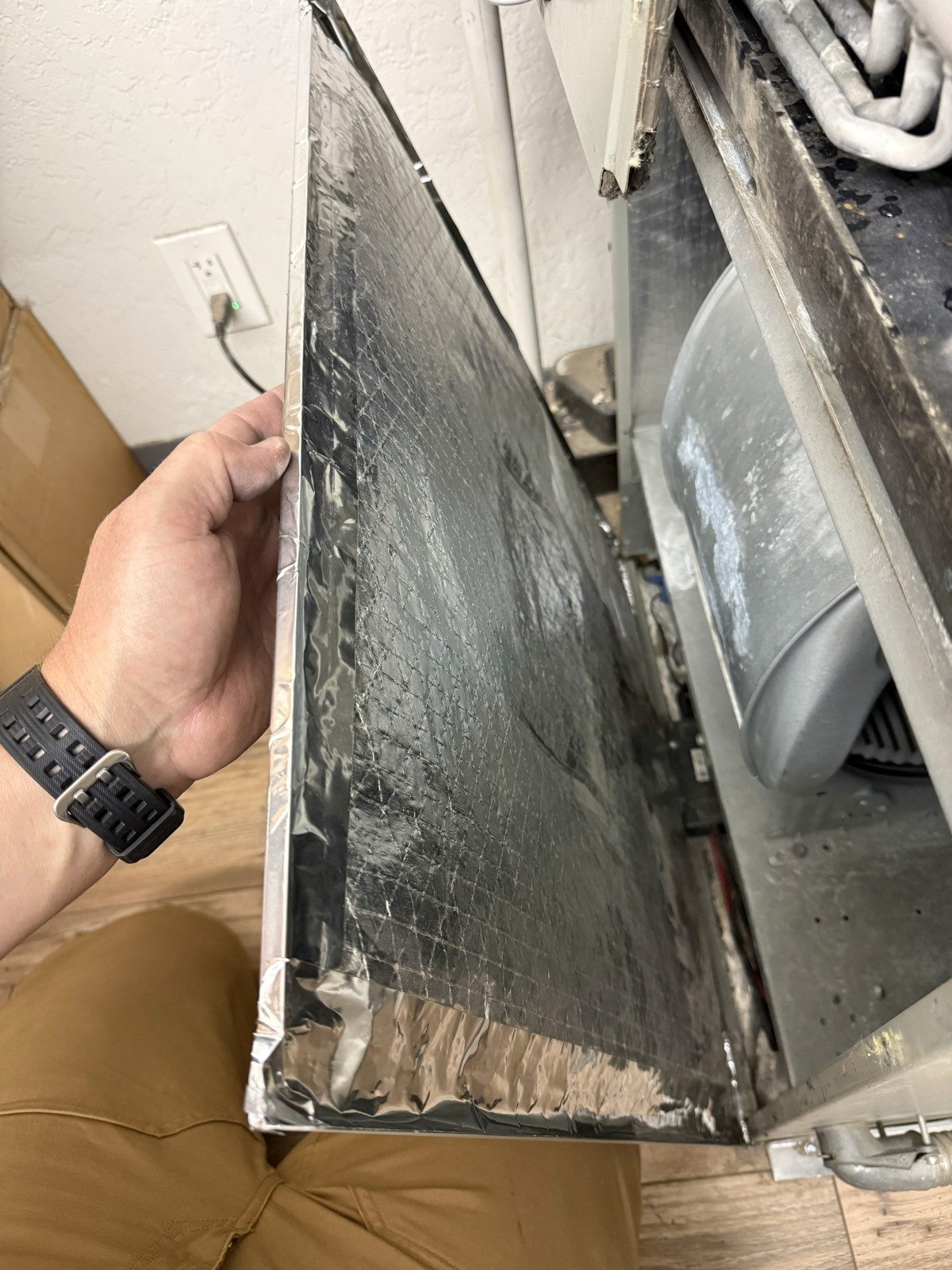

Bonded and taped so it can't be drawn back into the compartment.

Then the motor, and the two parts that travel with it. When a motor fails electrically, the contactor that switches it and the capacitor that runs it can be damaged in the same event, so in commercial service all three are replaced together. We specified an OEM motor over a universal one. The wiring, the speeds and the tolerances already match the equipment, and we step away from that only when a business can't wait and nothing else can be found.

Quoted the same afternoon, running the next day

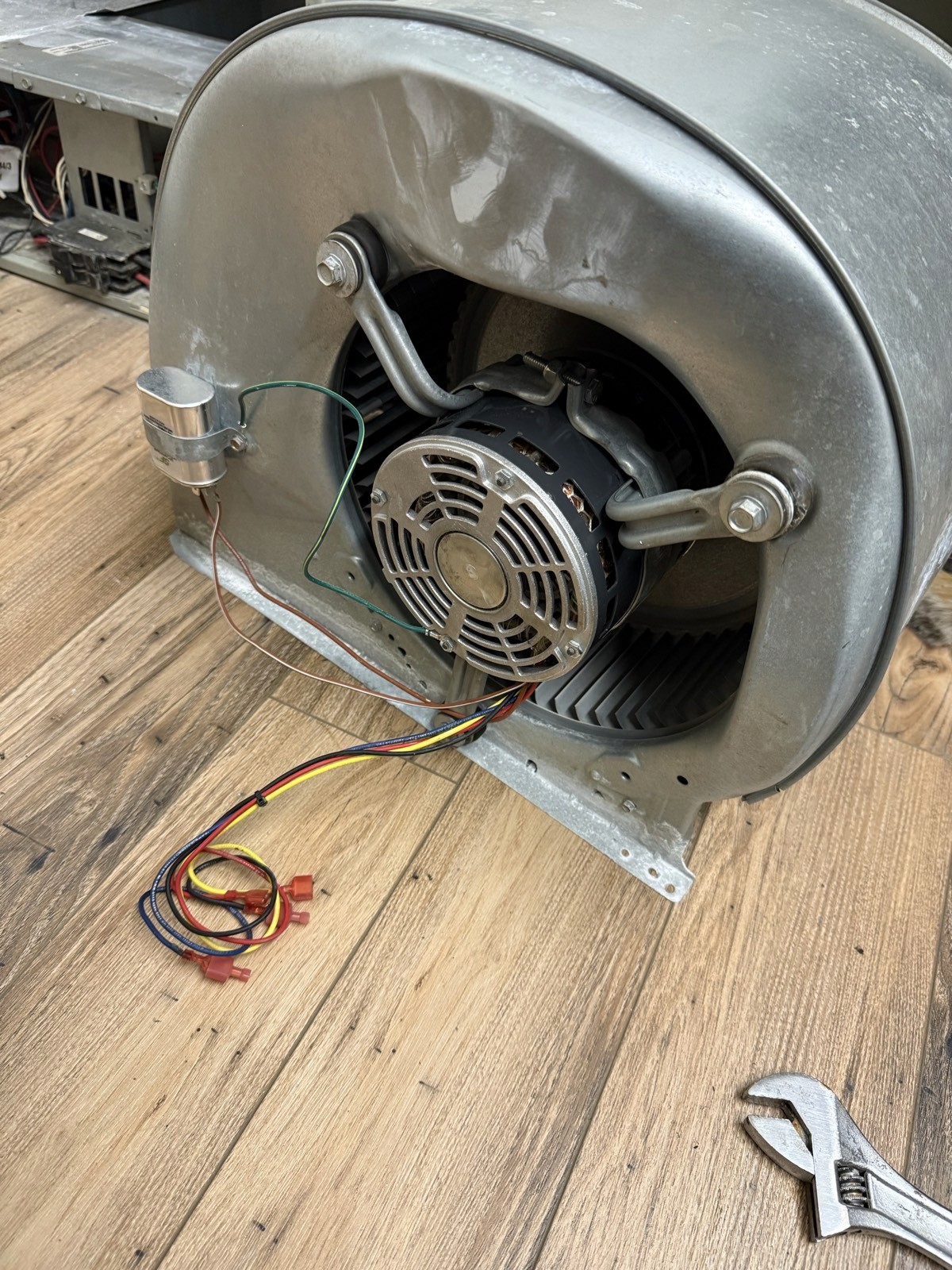

The new motor set in the blower assembly on the return visit.

Running the refrigeration side with no air moving indoors is how a compressor gets damaged, so we confirmed the outdoor unit would start, then shut the system down and left it down.

The quote was written in the shop that afternoon and approved on the spot. A local vendor had the OEM motor in stock and delivered it the next morning. We pulled the failed motor and the blower wheel, set the new motor, replaced the capacitor and contactor, rewired the assembly, cleaned it up, and the shop was cooling again that day.

What's still worth doing

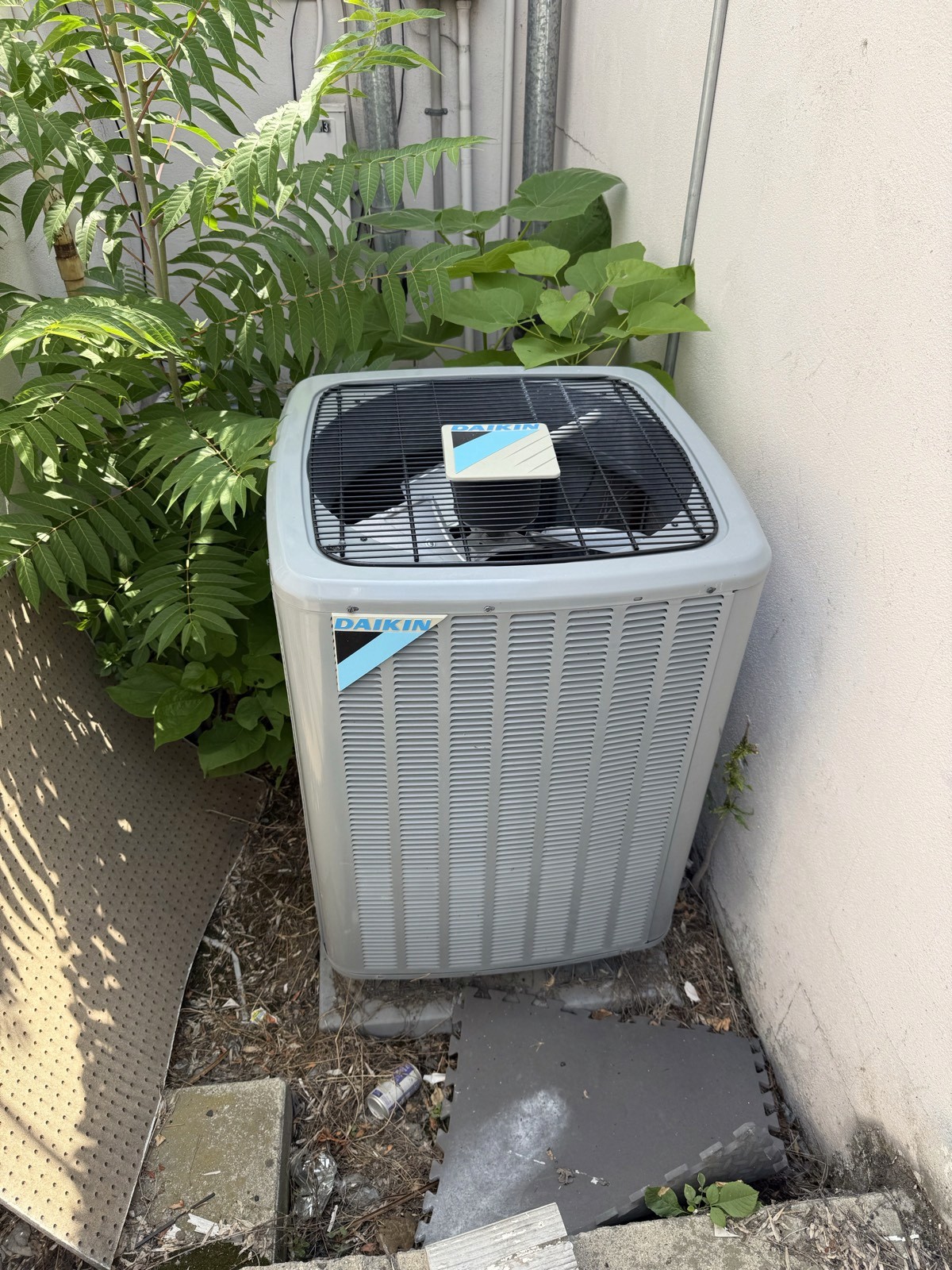

The outdoor unit. Its coil carries fine rubber dust from the shop's laser cutter and is due for a cleaning.

Outside, the condenser coil is packed with fine rubber dust from the laser that cuts the shop's stamps. It needs a cleaning, and in a building that makes that dust year round, cleaning belongs on a schedule.

The other item is a full set of readings now that air is moving properly: static pressure, pressure drop across the filter and the coil, blower amperage, temperature split, and a charge check. Those numbers answer what a repair alone can't, which is whether the insulation failed on its own or something in the ductwork helped pull it loose. Worth knowing before next summer.

If your building's cooling keeps failing after it's been repaired, that's the evaluation we do. We find the cause, put the correction in writing, and quote it before anything is ordered. Northstead works with businesses and homes across Boise, Eagle, Meridian, Star, Garden City and the greater Treasure Valley.
